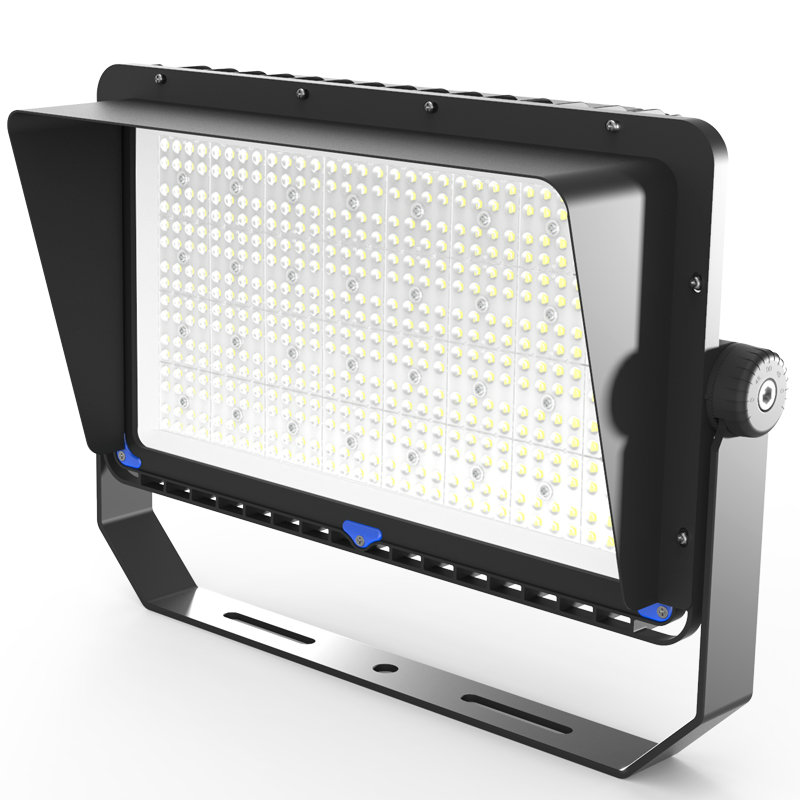

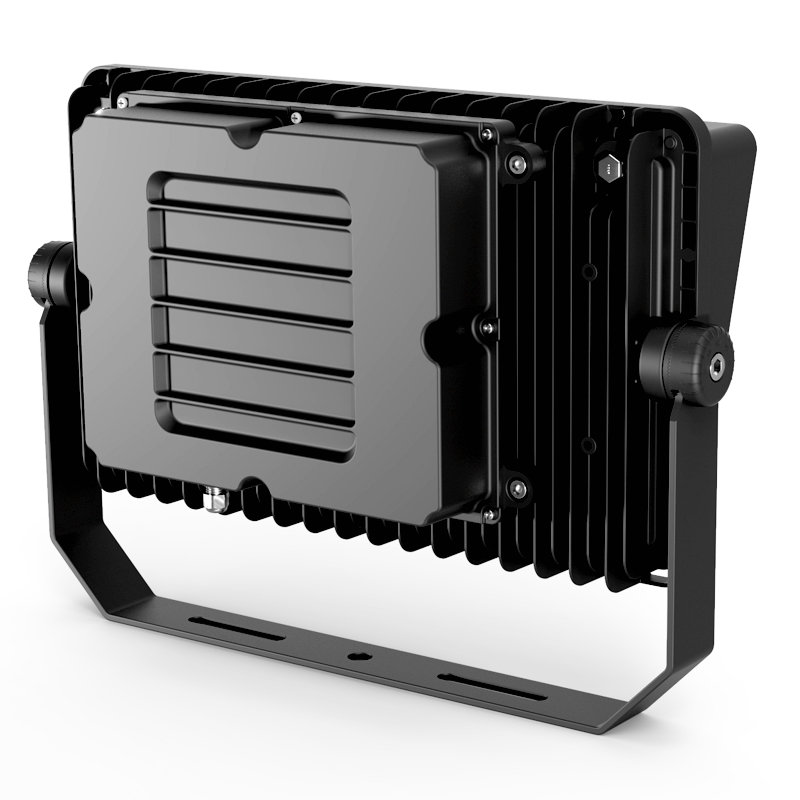

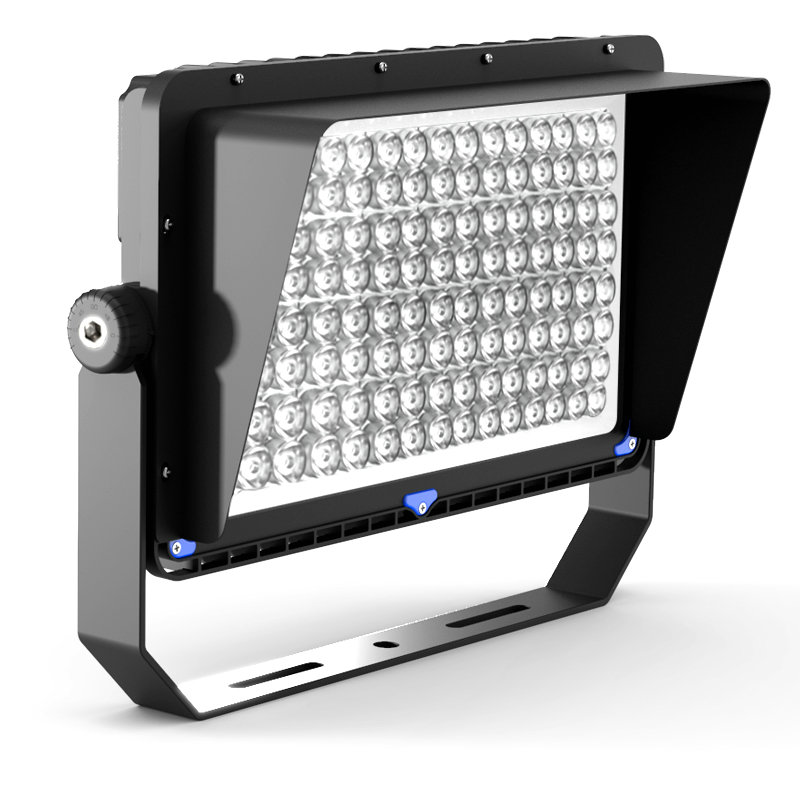

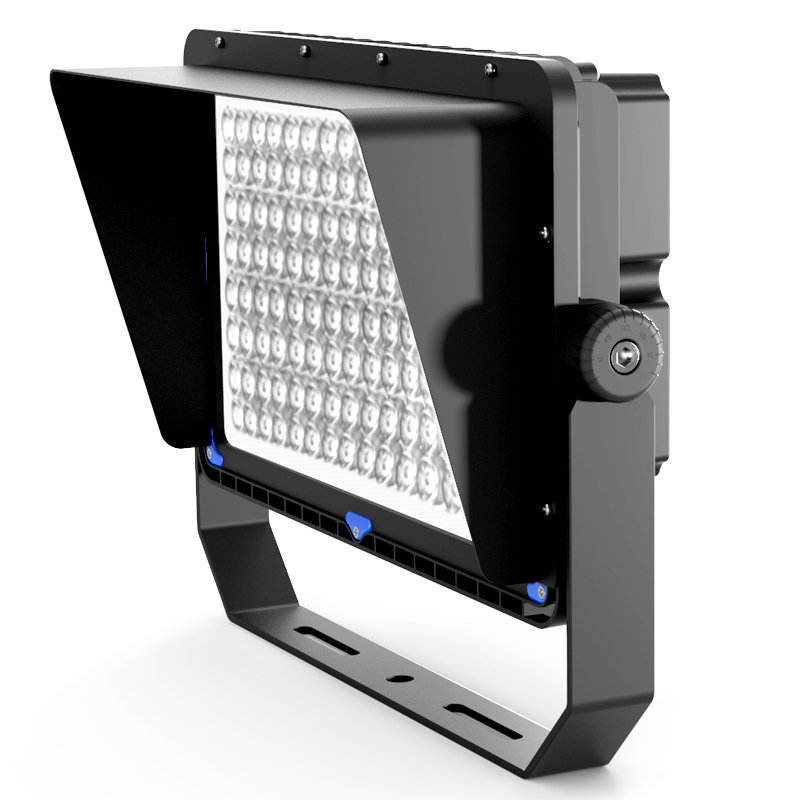

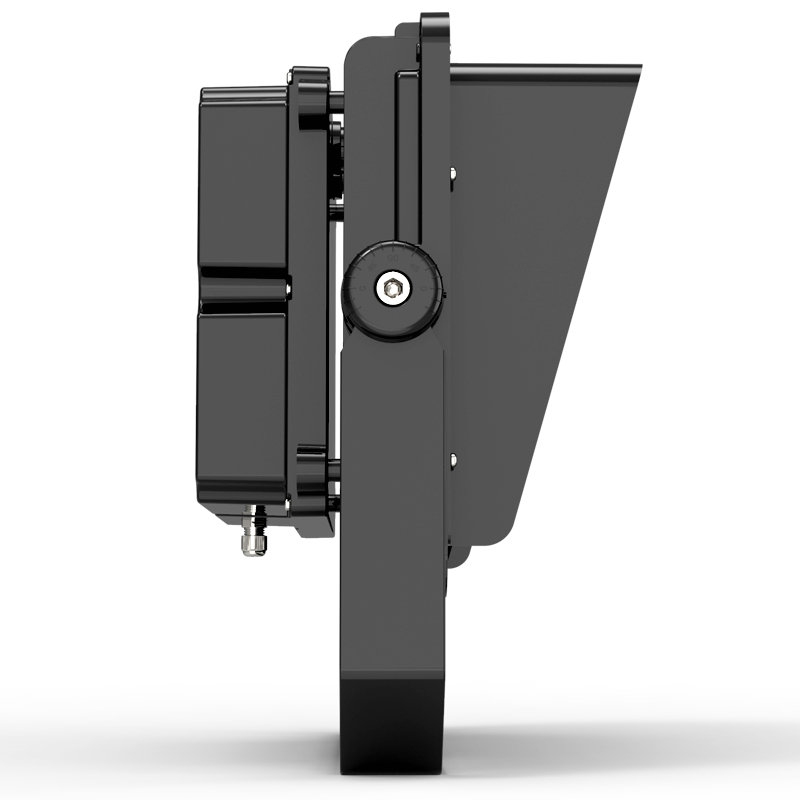

500w led stadium flood light

We are professional led stadium light manufacturer, and we supply 300w, 400w, 500w, 600w, 800w, 1000w, 1200w, 1500w, and 1800w anti-glare led stadium light, top quality with CE RoHS Certificates, 5 years Warranty. LED Orientalight Co., Limited has ample production experience for led stadium light, our products reaching the worldwide markets. If you are looking for a reliable supplier for high quality led stadium light, please feel free to contact us.

Model:LS1500

Send Inquiry

Product Description

1. Product Introduction of the 500w led stadium flood light

The characteristics of outdoor courts: large space, high pole installation, long lighting distance, to achieve good uniformity, the small angle light distribution of lamps is particularly important, so that the lighting area of the stadium can be perfectly covered, and the lamps can also be equipped with overflow covers. In order to prevent light pollution, let the place where the stadium should be bright is bright, and the place that should not be bright is not bright. LED stadium light needs to have anti-glare, high light efficiency, instant start, good stability, and single light can be connected to the intelligent control system, which can greatly reduce the operation and maintenance costs of the stadium.

2.Product Parameter (Specification) of the 500w led stadium flood light

Item No.	LS1300	LS1400	LS1500	LS1600	LS1800
Product Model	LM-LSG3030P300S01-CW	LM-LSG3030P400S01-CW	LM-LSG3030P500S01-CW	LM-LSG3030P600S01-CW	LM-LSG3030P800S01-CW
Size(mm)	531377229mm	531377229mm	637462264mm	637462264mm	573763252mm
Input Voltage(V)	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz
Color(CCT)	3000K/4000K/5000K/6500K	3000K/4000K/5000K/6500K	3000K/4000K/5000K/6500K	3000K/4000K/5000K/6500K	3000K/4000K/5000K/6500K
Luminous	45000lm	60000lm	75000lm	90000lm	120000lm
LED Quantity	512pcs	512pcs	800pcs	800pcs	1024pcs
Led Type	Osram or Lumileds	Osram or Lumileds	Osram or Lumileds	Osram or Lumileds	Osram or Lumileds
CRI	>80Ra	>80Ra	>80Ra	>80Ra	>80Ra
PF	>0.95	>0.95	>0.95	>0.95	>0.95
Beam Angle	15°/30° /60°/90° /120°/T2M /T3M	15°/30° /60°/90° /120°/T2M /T3M	15°/30° /60°/90° /120°/T2M /T3M	15°/30° /60°/90° /120°/T2M /T3M	15°/30° /60°/90° /120°/T2M /T3M
Lamp body material	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy
Installation	Bracket	Bracket	Bracket	Bracket	Bracket
Body Color	Black	Black	Black	Black	Black
Product certificates	CE RoHS	CE RoHS	CE RoHS	CE RoHS	CE RoHS
Lifespan	50,000hours	50,000hours	50,000hours	50,000hours	50,000hours
Warranty	5 years	5 years	5 years	5 years	5 years

Item No.	LS11000	LS11200	LS11500	LS11800
Product Model	LM-LSG3030P1000S01-CW	LM-LSG3030P1200S01-CW	LM-LSG3030P1500S01-CW	LM-LSG3030P1800S01-CW
Size(mm)	656847303mm	656847303mm	6561224303mm	6561224303mm
Input Voltage(V)	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz
Color(CCT)	3000K/4000K/5000K/6500K	3000K/4000K/5000K/6500K	3000K/4000K/5000K/6500K	3000K/4000K/5000K/6500K
Luminous	150000lm	180000lm	225000lm	270000lm
LED Quantity	1600pcs	1600pcs	2400pcs	2400pcs
Led Type	Osram or Lumileds	Osram or Lumileds	Osram or Lumileds	Osram or Lumileds
CRI	>80Ra	>80Ra	>80Ra	>80Ra
PF	>0.95	>0.95	>0.95	>0.95
Beam Angle	15°/30° /60°/90° /120°/T2M /T3M	15°/30° /60°/90° /120°/T2M /T3M	15°/30° /60°/90° /120°/T2M /T3M	15°/30° /60°/90° /120°/T2M /T3M
Lamp body material	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy	Aluminium Alloy
Installation	Bracket	Bracket	Bracket	Bracket
Body Color	Black	Black	Black	Black
Product certificates	CE RoHS	CE RoHS	CE RoHS	CE RoHS
Lifespan	50,000hours	50,000hours	50,000hours	50,000hours
Warranty	5 years	5 years	5 years	5 years

3. Product Feature And Application of the 500w led stadium flood light:

This series of high power led flood light (led stadium light) is well designed with features of high light efficacy, well temperature management, anti-glare reflectors, rotating modules and brackets, IK10 and IP66 for all types of outdoor high power field lighting,such as football field, soccer courts, baseball courts, tennis courts, high mast, tower crane, parking lot, billboard, tunnel etc.

4. Product Details of the 500w led stadium lights:

• 3030 SMD LED, completed light efficiency 150lm/w

• Mean well driver/sosen led driver etc

• IP66 waterproof

• Better heat dissipation with big aluminum PCB and SMD

• Consistent color rendering (CRI) > 80

• Warranty: 5 years

5. Product Qualification of the 500w led stadium lights.

6. Deliver,Shipping And Serving of the 500w led stadium light.

Our led stadium light has strong packaging design, the product will not be worn or broken during transportation, which can ensure the product reach your hand safely.

1) Our quality control (4 times 100% checking and 24 hours aging)

1.Raw material 100% check before production.

2.order must have a first sample and full check before manufacturing process.

3.100% check before aging.

4.24 hours aging with 500 times on off testing.

5.100% final inspection before packing.

2) Our service:

1.Your inquiry related to our products or prices will be replied in 2 hours even during holiday.

2.Well-trained and experienced staffs to answer all your inquiries in fluent English.

3.We accept “support” OEM&ODM orders

4.Distributorship is offered for your unique design and some our current models.

5.Protection of your sales are ideas of design and all your private information.

3) Warranty terms:

1/1 replacement of defects within the warranty period.

7.FAQ

Q: Where is your factory?

A: ShenZhen City, Guangdong Province.

Q: What is your terms of delivery?

A: We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.

Q:How long will it take if asking for the samples?

A: General speaking, 3-5 working days if asking for our regular items.

Q:What is your lead time for the mass products such as 500 units per item?

A: General speaking, about 15 working days after getting down payment and confirmation about the samples.

Q:What is your payment terms?

A: T/T, paypal, western union, or L/C.

Q: What are your market reach throughout the region?

A:Our markets around the world in every corner, we have 14 years of experience in foreign trade.

Q:What is your main product line is made?

A:We mainly produce led application classes and industrial lighting fixtures. Including daily life indoor lighting.

(led track light, led panel light, led strip, led linear light, led high bay, led floodlight, led stadium light, led street light solar street lights etc)

Q:Your factory or trading company?

A:We are a factory, we provide OEM services.
